Z441H spur gear flange gate valve

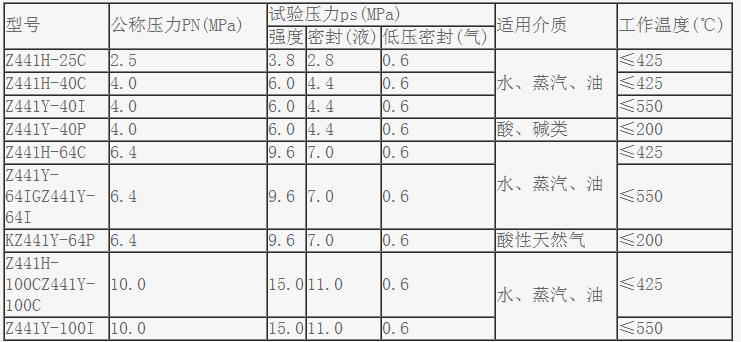

一、Z441H 正齒輪法蘭閘閥主要性能規范 Capability Criterion：

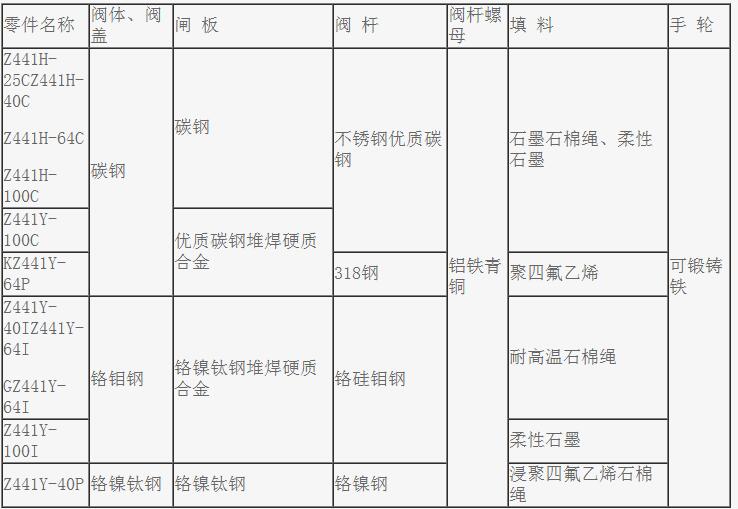

二、Z441H 正齒輪法蘭閘閥主要零件材料Materials Of main Parts ：
三、Z441H 正齒輪法蘭閘閥主要外型尺寸 Main outer Size：

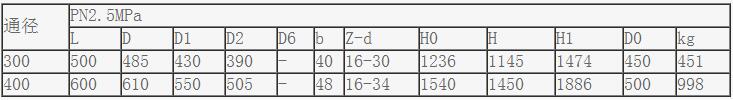

型號：Z441H-25C的主要外型尺寸：

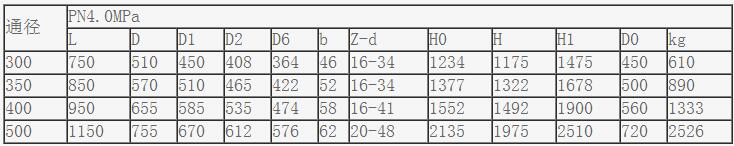

型號：Z441H-40C的主要外型尺寸：

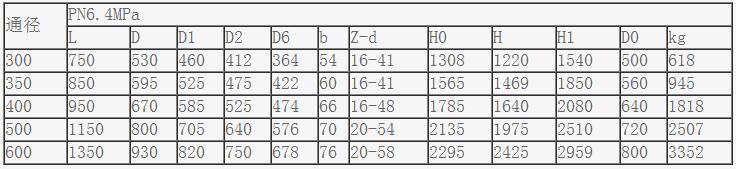

型號：Z441H-64C的主要外型尺寸：
型號：Z441H-100C的主要外型尺寸：
