Q614F three-way stainless steel pneumatic ball valve
三通不銹鋼氣動球閥產品特征
規格：1/4"-2"
公稱壓力：1000WOG/6.4MPa
適用溫度范圍：-40～+232℃
連接形式：NPT、Rc、DIN259/2999
材質：WCB CF8 CF8M CF3 CF3M
可加掛鎖裝置和ISO平臺
驅動方式:手動、電動、氣動
防吹出閥桿、自密封設計
采用全硅溶膠工藝精密鑄造鑄件

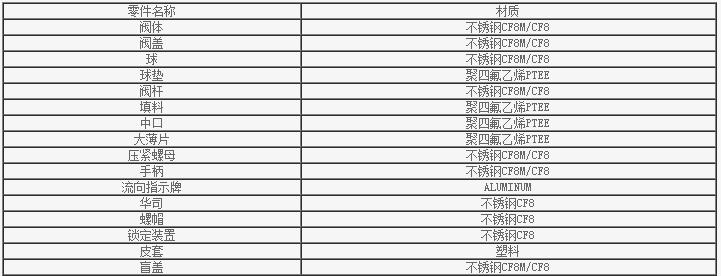

三通不銹鋼氣動球閥主要零件材料

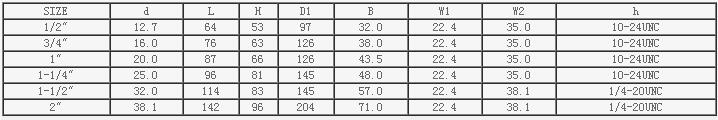

三通不銹鋼氣動球閥主要尺寸
