JM744X/JM644X quick opening mud valve
JM744X/JM644X快開排泥閥產品概述

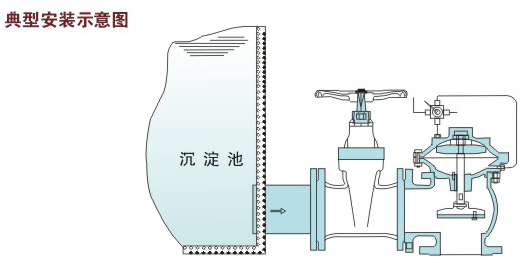

JM744X、JM644X隔膜式液壓、氣動快開排泥閥，是一種由液壓源或氣動源作執行機構的角型截?cái)囝?lèi)閥門。通常成排安裝在沉淀池底部外側壁，用以排除池底沉淀的泥砂和污物。該閥由尼龍強化橡膠隔膜將閥門分為兩個腔室，接通液壓或氣動源，采用電動或手機二位四通換向閥控制，實現快速排泥。該閥將隔膜代替活塞，無運動摩擦，更適用于泥漿等顆粒介質，大大提高了閥門的使用壽命。
JM744X/JM644X快開排泥閥主要零件材料
JM744X/JM644X快開排泥閥主要技術參數
公稱壓力：0.6Mpa、1.0 Mpa
公稱通徑：100～400mm
最低驅動壓力：0.15 Mpa
適用介質：水、污水
驅動介質：清水、氣
適用溫度：0～80℃
法蘭標準：GB/T 17241.6 GB/T 9113
試驗標準：GB/T 13927 Ap1598

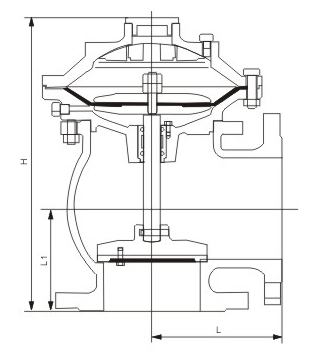

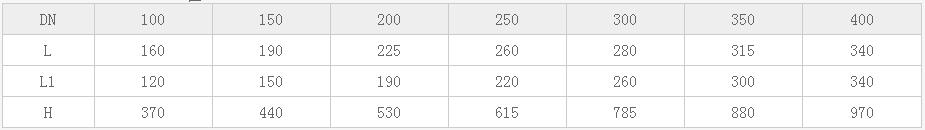

JM744X/JM644X快開排泥閥主要外形尺寸
